TL;DR:
- Effective camera placement begins with a thorough assessment of entry points, traffic flow, and high-value assets to maximize coverage and prevent blind spots. Cameras should be mounted at 8 to 10 feet to balance detail capture and tamper resistance, with location choices aligned to legal requirements and privacy considerations. Regular maintenance, proper signage, and careful positioning are essential for reliable surveillance and legal compliance across property types.
Strategic camera placement is defined as the deliberate positioning of surveillance equipment to maximize deterrence, evidence capture, and coverage across a property. A well-executed security camera placement guide does more than tell you where to mount hardware. It determines whether your system stops incidents before they happen or simply records them after the fact. Property managers overseeing multifamily housing, commercial buildings, or HOA communities face a specific challenge: coverage must be thorough without crossing into areas where surveillance is legally prohibited. The difference between a system that works and one that creates liability often comes down to placement decisions made before a single camera is installed.
How to assess your property for the best camera locations
Assessment is the first step in any effective camera deployment. Assessment-based placement focuses on high-value assets, entry and exit points, and traffic flow patterns to determine where cameras will deliver the most coverage per unit installed. Skipping this step leads to redundant coverage in low-risk zones and blind spots in areas that actually matter.

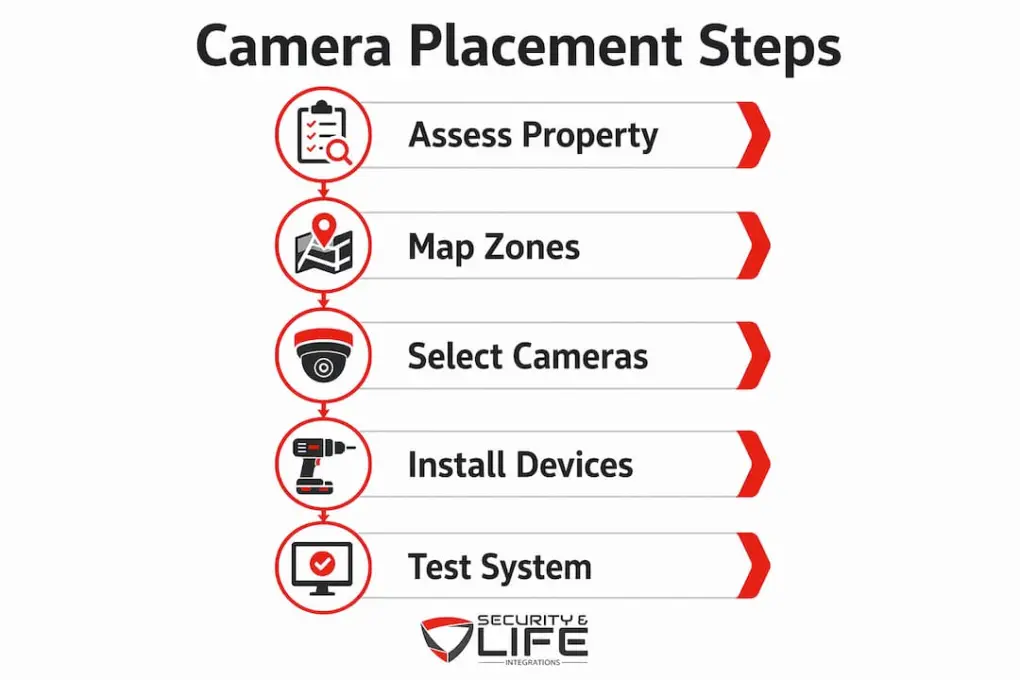

Follow this sequence to conduct a property security assessment:
- Walk the perimeter at different times of day. Lighting conditions change, and a camera angle that works at noon may produce glare or silhouette at dusk. Note where natural light sources create backlight problems.
- Map every entry and exit point. This includes main doors, service entrances, parking garage access points, stairwells, and loading docks. Each one is a vulnerability.
- Identify high-value asset zones. Server rooms, mail rooms, package storage areas, and management offices all require dedicated coverage.
- Trace traffic flow patterns. Hallways, lobbies, and common areas where residents or employees converge are convergence zones. These locations benefit from wider angle cameras that capture movement across a broad field.
- Document existing blind spots. Walk the property as if you were trying to avoid being seen. Any path that avoids camera coverage is a gap that needs to be addressed.
Pro Tip: For assisted living or medical facilities, security assessments must account for resident privacy rights from the start. Map restricted zones before finalizing any camera positions.
The output of your assessment should be a site map with marked coverage zones, priority rankings for each location, and notes on environmental factors like lighting and obstructions. This document becomes the blueprint for your entire installation.
What are the best security camera locations and mounting techniques?
Camera position determines whether footage is usable. Visible cameras at entry points serve as deterrents, while wider angle cameras positioned across common areas capture evidence by recording comprehensive movement patterns. Both functions are necessary, and they require different placement strategies.
Priority locations for outdoor coverage
- Front and rear entry doors: Mount cameras to capture clear head-and-shoulders views. Exit cameras must keep exiting individuals in focus within a 3 to 10 foot depth of field for reliable identification.
- Parking areas and driveways: Position cameras to capture license plates at entry and exit lanes. Angled placement at vehicle entry points improves plate readability. Security & Life Integrations covers license plate camera placement in detail for multi-tenant properties.
- Perimeter fencing and gates: Cover gate latches and fence lines where unauthorized access is most likely.
- Garages and loading docks: These are high-risk zones that combine vehicle access with limited foot traffic visibility.
Indoor placement considerations
Indoor cameras belong in lobbies, mail rooms, package storage areas, elevator interiors, and stairwell landings. Avoid pointing cameras at workstations where personal screens are visible, and never position them toward windows where backlight will wash out the image.
| Location | Camera type | Mounting height | Primary purpose |
|---|---|---|---|
| Front entry door | Fixed, narrow angle | 8 to 10 feet | Identification |
| Lobby or common area | Wide angle or PTZ | 9 to 10 feet | Evidence capture |
| Parking lot entry | License plate camera | 3 to 4 feet | Vehicle identification |
| Stairwell landing | Fixed, wide angle | 8 feet | Movement tracking |
| Perimeter fence line | Fixed, weatherproof | 10 feet | Deterrence and detection |
Mount cameras at 8 to 10 feet above ground as a standard. This height balances image detail with tamper resistance. Cameras mounted lower are easier to redirect or damage. Cameras mounted too high lose facial detail.
Pro Tip: Concealed wiring and vandal-resistant housings reduce tampering risk significantly. Run cables through conduit inside walls wherever possible, and use metal housing on outdoor units exposed to public access.
For front door installations, front door security devices that combine cameras with access control hardware provide layered coverage at the most critical entry point on any property.
How to balance privacy, legal compliance, and camera placement
Legal compliance is not optional, and the consequences of improper placement extend beyond fines. Tenants and residents have legal standing to pursue action when surveillance crosses into protected private spaces.
The core rules for legally compliant placement are:
- Never record bathrooms, bedrooms, or private living spaces. Electronic recording in bathrooms and bedrooms is strictly prohibited under state privacy laws in assisted living and residential settings. The same principle applies broadly across property types.
- Conduct a Data Protection Impact Assessment (DPIA) before deployment. A DPIA before deployment is required under several regulatory frameworks and identifies privacy risks before cameras go live.
- Post visible signage at all camera locations. Signage must be clearly readable and sized appropriately for the viewing distance. Residents and visitors have a right to know they are being recorded in common areas.
- Review wide-angle lens coverage carefully. Wide field-of-view lenses can inadvertently capture adjacent private spaces. A physical site walkthrough with the camera live confirms actual coverage before final mounting.
Privacy compliance is as critical as technical placement. Conducting a DPIA and posting proper signage prevents inadvertent violations that can expose property managers to significant legal liability.
For multi-tenant residential properties, camera placement in housing requires particular care. Common areas are generally permissible. Hallways directly outside individual unit doors require careful angle management to avoid capturing activity inside units when doors open.
What technical factors affect camera effectiveness?
Camera specifications matter less than placement geometry. Vertical mount height and lens tilt angle are more critical to identification quality than resolution alone. A 4K camera aimed at the wrong angle produces unusable footage. A correctly positioned 1080p camera captures clear facial detail every time.
Address these technical factors in sequence:
- Lighting assessment. Assess natural and artificial lighting throughout the day and at night. Cameras facing windows or exterior light sources will produce silhouetted subjects. Reposition or add supplemental lighting.
- Field of view selection. Narrow angle lenses (25 to 45 degrees) work for entry points where identification is the goal. Wide angle lenses (90 to 120 degrees) suit open areas where movement tracking matters more than facial detail.
- Weatherproofing for outdoor units. Outdoor cameras need an IP65 or higher rating to handle rain, dust, and temperature variation. Housing seals protect the lens and electronics.
- Overlap coverage. Adjacent cameras should share a small overlap zone so that if one camera is blocked or fails, the neighboring unit still captures the area. Overlap eliminates blind spots created by obstructions like parked vehicles or seasonal foliage.
- Angle adjustment for distortion. Cameras tilted too steeply downward compress the image and reduce the usable identification zone. Keep tilt angles moderate and verify footage quality from a monitor before finalizing the mount.
| Technical factor | Recommended standard | Impact if ignored |
|---|---|---|
| Mount height | 8 to 10 feet | Tampering risk or lost facial detail |
| Lens angle | 25 to 120 degrees by use case | Missed coverage or unusable footage |
| Weatherproofing | IP65 or higher for outdoor | Hardware failure in adverse conditions |
| Lighting direction | Avoid facing light sources | Silhouetted or washed-out images |
| Coverage overlap | Minimum 10% between adjacent cameras | Blind spots from obstructions |
How to troubleshoot common placement issues
Even a well-planned system develops problems over time. Landscaping grows, lighting fixtures change, and cameras shift from vibration or weather. Documented maintenance programs with regular performance verification are the standard for confirming that coverage remains adequate after installation.
Watch for these common issues and address them directly:
- Blind spots from new obstructions. Trees, signage, and parked vehicles can block coverage zones that were clear at installation. Review footage quarterly and adjust camera angles or trim vegetation as needed.
- Signs of tampering. A camera that has been physically redirected, spray-painted, or covered is a sign of deliberate interference. Tamper-resistant housings and concealed wiring reduce this risk, but regular visual inspections catch it early.
- Degraded image quality. Lens fogging, dirt accumulation, and condensation inside housings all reduce footage quality. Clean lenses on a scheduled basis and check seals on outdoor units after severe weather.
- Firmware and software updates. Cameras running outdated firmware are vulnerable to remote access exploits. Schedule firmware updates as part of your maintenance cycle.
- Seasonal adjustments. Sun angles change with seasons, meaning a camera that avoids glare in winter may face direct backlight in summer. Reassess lighting conditions twice a year.
Pro Tip: Test your system by walking the property and reviewing live footage from each camera simultaneously. This reveals coverage gaps that are invisible when reviewing recorded footage after the fact.
A CCTV installation guide that includes a maintenance schedule from day one prevents most of the problems that degrade system performance over time.
Key takeaways
Effective camera placement requires assessment before installation, correct mounting geometry, legal compliance, and ongoing maintenance to deliver reliable surveillance coverage.
| Point | Details |
|---|---|
| Assessment comes first | Map entry points, traffic flow, and high-value zones before selecting camera positions. |
| Mount at 8 to 10 feet | This height balances facial detail capture with tamper resistance for most property types. |
| Legal compliance is mandatory | Conduct a DPIA, post visible signage, and never record bathrooms or private living spaces. |
| Lighting determines footage quality | Avoid cameras facing bright light sources and reassess lighting conditions seasonally. |
| Maintenance preserves coverage | Schedule quarterly reviews, firmware updates, and lens cleaning to prevent system degradation. |
What I’ve learned from watching placement decisions go wrong
After working with property managers across multifamily housing, commercial buildings, and institutional facilities, the pattern I see most often is this: cameras get installed based on where they are convenient to mount, not where coverage is actually needed. A camera above the reception desk looks professional. A camera covering the service entrance at the back of the building is the one that actually captures incidents.
The second mistake I see consistently is treating deterrence and evidence capture as the same objective. They are not. A camera mounted visibly at eye level on a front door deters. A wide angle camera mounted high in a parking garage captures evidence. You need both, positioned deliberately for each function.
Privacy compliance is where I see the most serious errors. Property managers sometimes assume that common areas are always permissible and private spaces are always off-limits, and that the line is obvious. It is not. A wide angle lens in a hallway can capture inside a unit every time a resident opens their door. A camera positioned near a locker room entrance can capture more than intended. The only way to confirm compliance is to view live footage from the installed position before finalizing the mount.
The properties with the best outcomes are the ones that treat camera placement as a system design problem, not a hardware installation task. That means assessment, documentation, legal review, and scheduled maintenance. It takes more time upfront. It prevents far more problems over the life of the system.
— Zachary
How Security & Life Integrations can help with your camera system
Security & Life Integrations designs and installs video surveillance systems built around your property’s specific coverage requirements, not a generic template.
The process starts with a professional site assessment that maps vulnerabilities, entry points, and coverage zones before a single camera is specified. From there, Security & Life Integrations handles placement planning, installation with tamper-resistant mounting, concealed wiring, and weatherproof hardware selection. The result is a system designed to meet both your security objectives and your legal compliance requirements. For property managers overseeing multifamily housing or commercial facilities, professional video surveillance from Security & Life Integrations includes 24/7 monitoring support and ongoing system maintenance. Contact Security & Life Integrations to schedule a property assessment.
FAQ
Where should security cameras be placed first?
Entry and exit points are the highest priority locations. Front doors, rear doors, and garage access points should each have at least one camera aimed to capture clear head-and-shoulders views within a 3 to 10 foot depth of field.
How high should outdoor security cameras be mounted?
Mount outdoor cameras at 8 to 10 feet above ground. This height provides clear facial detail while keeping the camera out of easy reach for tampering or physical redirection.
Are there places where security cameras are not allowed?
Cameras are prohibited in bathrooms, bedrooms, and private living spaces under state privacy laws. In residential and assisted living settings, electronic recording in these areas is strictly forbidden regardless of the property owner’s intent.
Do I need signage if I install security cameras?
Signage is required in most jurisdictions and under most regulatory frameworks. Signs must be clearly visible and sized appropriately for the viewing distance so that residents and visitors are notified they are being recorded.
How often should a security camera system be tested?
Security & Life Integrations recommends quarterly reviews of live footage from each camera, combined with scheduled firmware updates and lens cleaning. Seasonal reassessment of lighting conditions catches glare and backlight problems that develop as sun angles change.
