Video Surveillance Installation Guide for Property Managers

TL;DR:

• Proper planning and site assessments are essential to prevent costly mistakes in video surveillance system installation.
• Using high-quality, pure copper Cat6 cables and verifying connections before mounting ensures system reliability and optimal performance.

Setting up a video surveillance system sounds straightforward until you are standing on a ladder trying to figure out why your camera feed is pixelated, your cable run is too short, or your NVR can’t find half the cameras on the network. This video surveillance installation guide walks you through every stage of the process, from site assessment to final configuration, so you avoid the costly mistakes that catch most first-time installers off guard. Whether you manage a multifamily property, a retail space, or a warehouse, getting this right the first time saves you time, money, and headaches.

Table of Contents

• Key takeaways

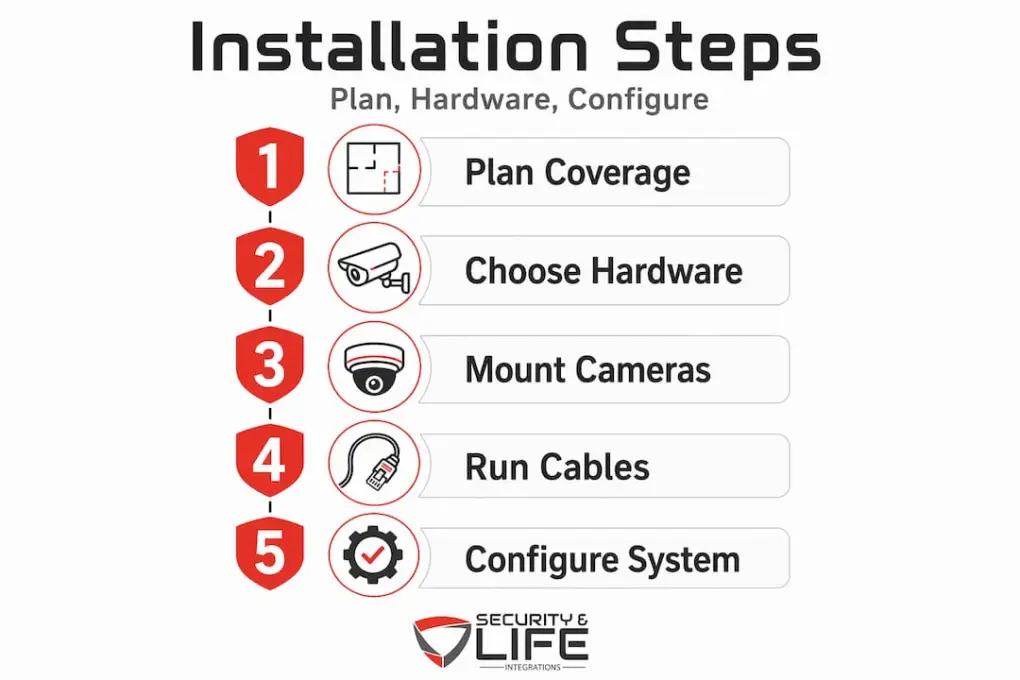

• Your video surveillance installation guide starts with planning
• Selecting the right hardware and tools
• Mounting cameras and running cables correctly
• Configuring your system and verifying performance
• Mistakes that derail surveillance setups
• What I have learned from real surveillance installations
• Let Security & Life Integrations handle the complexity
• FAQ

Key takeaways

Your video surveillance installation guide starts with planning

Most surveillance projects fail before a single cable is pulled. The planning phase is where you define what you actually need, and skipping it leads to blind spots, wasted cable, and cameras mounted in the wrong places. Mapping coverage areas and cable routes before purchasing hardware is one of the most reliable ways to prevent costly mistakes.

Start by walking the entire property with a notepad or a site plan printed out. Mark every entry and exit point, parking area, stairwell, hallway, and any location where high-value assets are stored. These are your priority zones.

Once you have your coverage map, record the following for each camera location:

• Distance from the nearest power source or network switch
• Lighting conditions at different times of day (direct sunlight, shadows, low light at night)
• Obstructions such as columns, vegetation, or signage that may create blind spots
• Wall or ceiling material (drywall, concrete, brick) that affects drilling and anchoring
• Whether the location is indoors, outdoors, or in a transition zone exposed to weather

One detail most people overlook is the balance between visible and discreet camera placement. Visible cameras deter crime at entry points, while discreet units placed for wider coverage capture incident footage without tipping off anyone who might disable a visible unit. Use both intentionally.

You also need to address privacy early. Courts have ruled that surveillance of shared spaces can cross the line into excessive intrusion, particularly in communal areas. Define camera angles that capture what you need without recording areas where tenants or employees have a reasonable expectation of privacy. Document your coverage decisions in case you are ever questioned about them.

Pro Tip: Create a simple spreadsheet with one row per camera location. Include columns for distance to switch, cable route, mount height, camera type, and IP address. This becomes your master reference throughout the entire installation.

Selecting the right hardware and tools

Once your site plan is complete, your hardware list almost writes itself. The two primary camera types you will choose between are wired Power over Ethernet (PoE) cameras and wireless cameras. Wired PoE cameras are more reliable for permanent installations at commercial properties or multifamily housing. Wireless cameras are faster to deploy but depend on WiFi signal strength, which can degrade through concrete walls and over distance.

For most property managers and business owners, PoE systems are the better long-term choice. They run power and data through a single Cat6 cable, which simplifies installation. The critical detail here: only use pure copper Cat6 cables. CCA cables fail at longer runs and are a leading cause of PoE disconnections in high-resolution systems. The cost difference between CCA and pure copper is minor. The reliability difference is not.

Cable run distance matters too. Standard Ethernet runs reliably up to 328 feet. Beyond that, you need a switch or extender mid-run. Factor this into your site plan and add a 20% safety margin when calculating PoE power budgets across your switch.

For camera resolution, 4MP or higher is the standard for any camera where facial recognition matters. At entry points, you want at least 4MP with a varifocal lens so you can adjust the field of view after mounting. For wide-area coverage like parking lots, 8MP or greater with a wide-angle lens gives you more usable detail when you need to zoom in on footage.

Your tool list should include:

• Variable-speed drill with masonry, wood, and metal bits
• Cable fish tape and pull strings for running wire through walls
• Cable tester to verify continuity and PoE before mounting
• Appropriate anchors for each wall type (toggle bolts for drywall, masonry anchors for concrete)
• Weatherproof silicone sealant for outdoor penetrations
• Conduit and fittings for exposed exterior cable runs
• PoE switch with enough ports and wattage for your camera count

Pro Tip: Before purchasing your PoE switch, add up the wattage of all cameras and multiply by 1.2. That is your minimum switch power budget. Buying undersized means cameras may not power on reliably when the switch is under load.

Mounting cameras and running cables correctly

With your hardware ready and your site plan in hand, you can start the physical installation. Order matters here. Run all cables first, then mount cameras.

Follow these steps for each camera location:

1. Mark the cable route on your site plan before drilling anything. Identify where the cable will enter the wall, how it will travel through the building (attic, crawl space, conduit, or along baseboards), and where it terminates at the switch or NVR.
2. Drill your entry and exit holes at a slight downward angle on exterior walls. This prevents water from running into the wall along the cable.
3. Pull the cable through the route and leave at least 12 inches of extra cable at the camera end. You will need this slack when adjusting camera angle.
4. At outdoor locations, form a drip loop before the cable enters the wall or the camera housing. A drip loop is a downward curve in the cable that directs water away from the entry point.
5. Seal every exterior penetration with weatherproof silicone sealant after pulling the cable through. Moisture damage to NVRs and camera housings is a common and preventable failure.
6. Mount the camera bracket to the wall using anchors appropriate to the surface. Concrete and brick require masonry anchors. Drywall over wood framing should hit a stud whenever possible.
7. Optimal camera height is 8 to 10 feet above the floor for most indoor and outdoor applications. Below 8 feet, cameras are easy to disable or reposition. Above 10 feet, you lose facial detail at standard resolutions.
8. Before tightening the camera fully into its final position, connect it temporarily and verify the image angle using a monitor or laptop. Adjust before the bracket is locked down.

Pro Tip: Test camera connectivity and verify the IP address at ground level before climbing a ladder or sealing walls. Discovering a faulty cable or misconfigured IP address after the camera is mounted wastes significant time.

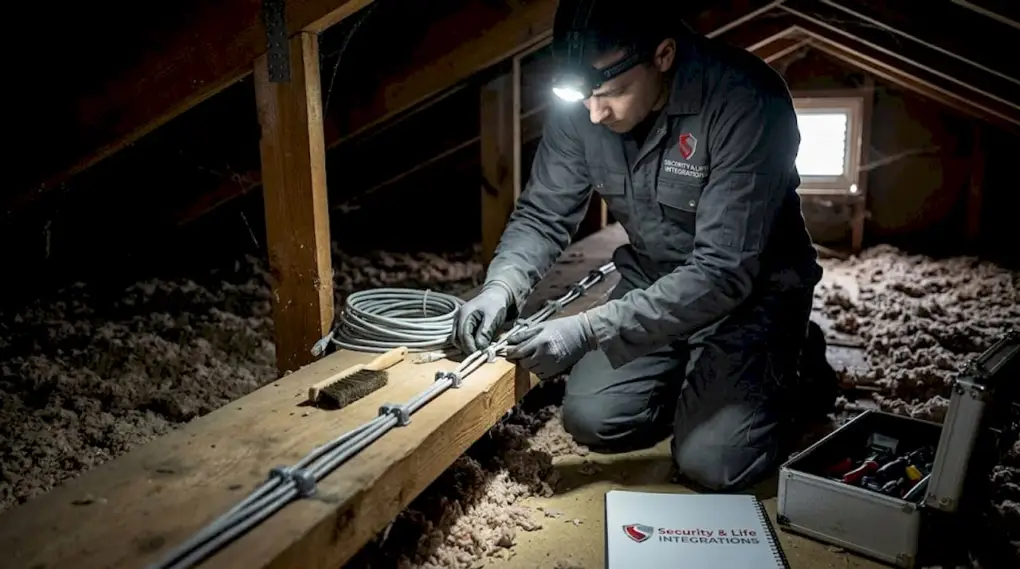

For cable runs through attics or crawl spaces, keep cables fastened with cable staples or clips every 24 inches. Unsupported runs sag, catch on HVAC ducts, and are harder to trace when something goes wrong later. Use conduit on any exposed exterior runs to protect against UV degradation and physical damage.

Configuring your system and verifying performance

Physical installation is half the job. The video surveillance setup guide does not stop at mounting. Configuration determines whether your system actually does what you need it to do.

Start with security basics:

1. Change the default admin password on your NVR to something unique and complex. Default credentials are publicly known and are the first thing an attacker tries.
2. Assign static IP addresses to each camera or use DHCP reservations so camera addresses do not change after a router restart.
3. Discover all cameras through the NVR’s built-in search tool and confirm each one appears with the correct channel assignment.
4. Set motion detection zones for each camera individually. Draw zones around the areas you actually want to monitor and exclude zones that would trigger false alerts, such as trees moving in the wind or busy public sidewalks adjacent to your property.
5. Configure your video retention period based on your compliance requirements. Typical policies range from 14 to 30 days. For regulated environments, confirm requirements with your legal or compliance team before finalizing.
6. Enable remote access and test the live view from a mobile device or off-site computer. Confirm that alerts are delivered to the right contacts.

After the initial configuration, run a full system test:

• Verify night vision activates automatically when lighting drops below threshold
• Confirm timestamps are accurate and set to the correct time zone
• Trigger a motion event and confirm the alert is received and the clip is recorded
• Review footage quality at the farthest camera to confirm cable runs are performing as expected

Common issues at this stage include cameras not appearing on the network (usually a cable fault or IP conflict), poor image quality (often a focus or lens selection issue), and motion alerts not firing (zone settings too narrow or sensitivity set too low).

Mistakes that derail surveillance setups

Even well-planned installations run into problems. These are the most common ones.

• Mounting cameras too low exposes them to tampering and repositioning by anyone with basic reach. Keep all cameras above 8 feet.
• Ignoring WiFi signal strength before committing to wireless cameras leads to dropouts. Test signal strength at every proposed wireless camera location before finalizing placement.
• Skipping firmware updates after installation leaves known vulnerabilities in place. Update camera and NVR firmware before putting the system into service.
• Not sealing exterior penetrations leads to moisture infiltration over time, which corrodes connectors and causes intermittent failures that are hard to diagnose.
• Failing to document the system means the next person who manages the property has no idea how it is configured, where cables run, or what the NVR credentials are.

Surveillance effectiveness depends on procedural frameworks that manage footage access and respect privacy boundaries, not just on hardware placement. A well-configured system with clear policies for footage review and incident documentation is more defensible and more useful than a poorly managed one with more cameras.

What I have learned from real surveillance installations

I have seen properties with 30 cameras that provided almost no usable evidence because the planning phase was treated as optional. And I have seen a 6-camera setup on a mid-size commercial property that resolved three insurance disputes in a single year because the coverage was deliberate and the footage quality was high.

The most important thing I tell anyone starting a surveillance project: do the site survey before you buy anything. It sounds obvious, but the pressure to get cameras up fast leads people to purchase equipment and then figure out where it goes. Professional surveys map cable lengths and mounting points before a single dollar is spent on hardware. That sequence exists for a reason.

I have also seen the privacy side handled badly. Recording communal or semi-public spaces without any disclosure creates legal exposure that no security benefit justifies. Define your camera zones, post notice where required, and document why each camera is positioned where it is. The added step takes 30 minutes and protects you from significant liability.

On the question of DIY versus professional installation, my honest view is this: if your property has more than 8 cameras, exterior cable runs through concrete or multiple floors, or requires integration with access control systems, bring in a professional. The labor cost is real, but so is the cost of troubleshooting a system that was installed under budget and over deadline. For smaller residential or simple commercial setups, a well-prepared owner or property manager can handle installation with the right tools and this kind of step-by-step guidance.

Security & Life Integrations offers CCTV installation guidance and professional support for property managers who want to get it right without guessing.

— Zachary

Let Security & Life Integrations handle the complexity

Security & Life Integrations works with property managers, HOA communities, and business owners across residential and commercial sectors to design and deploy surveillance systems that fit the property, not just the budget. Their video surveillance solutions include high-definition PoE camera systems, NVR configuration, remote access setup, and ongoing support after installation. Beyond cameras, Security & Life Integrations integrates access control systems and fire safety into a unified security plan so your property is covered from every angle. If you are managing a multifamily property or a commercial building and want a professional assessment of your current or planned surveillance setup, Security & Life Integrations offers consultations tailored to your specific coverage needs.

FAQ

What is the best mounting height for security cameras?

The recommended height is 8 to 10 feet above the floor. Below 8 feet, cameras are vulnerable to tampering. Above 10 feet, facial recognition quality drops at standard resolutions.

How far can you run a PoE camera cable?

PoE cameras run reliably on standard Ethernet up to 328 feet. Beyond that distance, signal and power quality degrade, and you need a midpoint switch or PoE extender.

Should I configure cameras before or after mounting?

Configure them before mounting. Testing at ground level verifies IP addresses, camera connectivity, and image quality before you commit to final placement, which saves significant rework time.

How long should I retain surveillance footage?

Retention policies typically run 14 to 30 days, but regulated industries or lease agreements may require longer periods. Confirm your specific compliance requirements before setting retention on the NVR.

When should I hire a professional instead of doing it myself?

Hire a professional for installations with more than 8 cameras, multi-floor cable runs through concrete or masonry, or systems that need to integrate with access control or fire safety platforms. The complexity and risk of rework outweigh the cost of professional installation in those cases.
